I picked up a front Dana 60 axle the other day– it is from a 1979 F250. This thing is massive–my internet searchage results detail that it weights in the neighborhood of 500lbs! I have a lot to do before I can actually use it, including but not limited to:

[caption id="" align=“alignnone” width=“400” caption=“f350 front d60”][/caption]

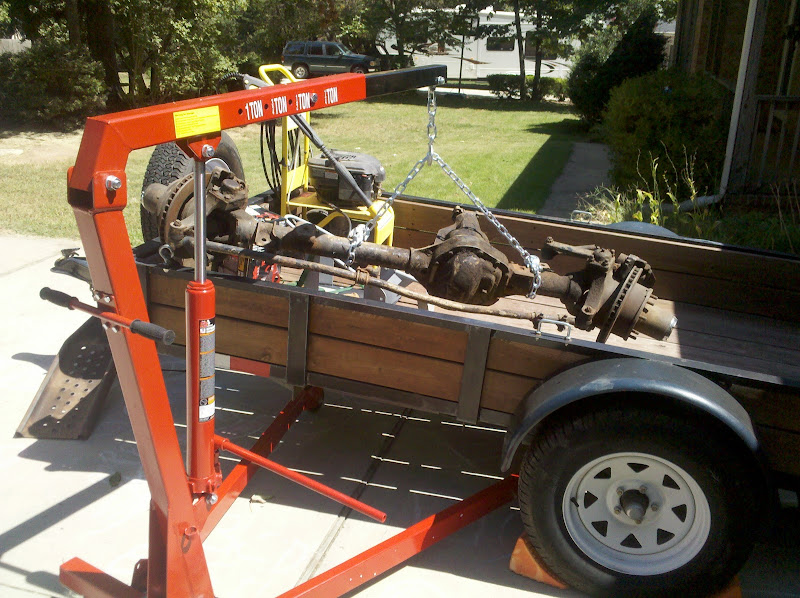

Although my brother and I tried…the ~500lb weight of this thing defeated us, and I had to go get an engine hoist to unload it and move it around!

[caption id="" align=“alignnone” width=“400” caption=“D60 front on hoist”][/caption]

Other front Dana 60 info (from[ Mr N’s page](http://77cj.littlekeylime.com/Dana60.htm" target="_blank)):

BOM: 610023

Axle shaft PN: 660048-1 & 2

Dia. and spline inner: 1.5" 35 spline

Inner shaft (center of yoke to end): 34 35/64"

Inner shaft (center of yoke to end): 18 43/64"

Dia. and spline outer: 1 5/16" 30 spline

Outer shaft (center of yoke to end): 11 13/64"

U-joint: 5-332x
